Equipment Application
This double abrasive belts sander is mainly used to sanding and deburring the surface, edge and hole of the work piece which cut by laser, plasma, stamping and shearing. To realize the work piece surface brushed, oxide skin removed, polished and slight chamfered.
Share:
Features
1. Application: remove solid slag and burrs on the surface of workpiece; remove rust and oxide layer on the surface of the workpiece;
2. Scope of workpiece: metal sheet cut by laser, fire, CNC stamping and punched
3. Suitable material: stainless steel, iron, aluminum and copper. Remove oxide skin, polishing and brushing are available.
4. Metal sheet maximum width: 6300mm
5. Polishing or brushing

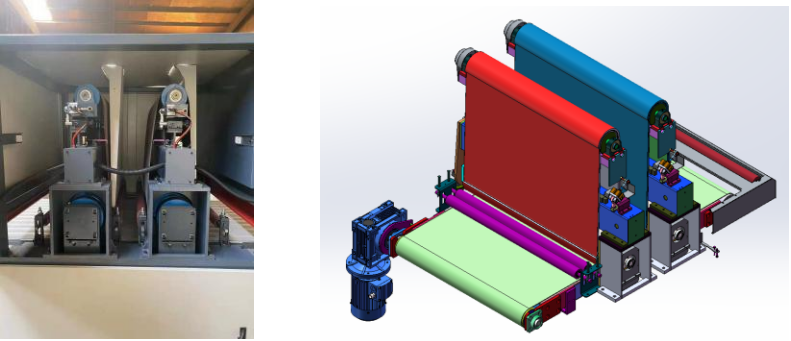

Equipment Schematic Diagram
Parameter Table
List of Spare Parts
| Sr. | Part | Size/mm | Mesh No. | Duration | Picture |
| 1 | Wideabrasive belt | 650*1920 | 40/80/120 |  |
Equipment Configuration and Related Technical
| Item | Parameters |
| Model | YZ630S |
| Dimensions | 1600*1200*2000mm, 1200KG |
| Min. Work piece length | ≥300mm |
| Work piece thickness | 0.5-110mm （maximum 0.2mm） |
| Feeding speed | 0-25m/min |
| Feeding motor power | 1.1Kw |
| Lifting motor power | 0.37Kw |
| Abrasive belt No. 1 | |
| Rate of work | 11Kw Hard |
| Rubber roller | Hard rubber covered roller*φ160mm |
| Abrasive belt No. 2 | |
| Rate of work | 11Kw Soft |
| Rubber roller | Soft rubber covered roller*160mm |
| Abrasive belt size | 650*1920mm |
| Total rate of work | 23.47Kw |
| Magnetic valve | JELPC |
| Material of feeding bed | Marble |
| Bearing | TR |
| Electric | CHINT |
| Package | Wooden box: 1700*1300*2300mm, 1300KG |
