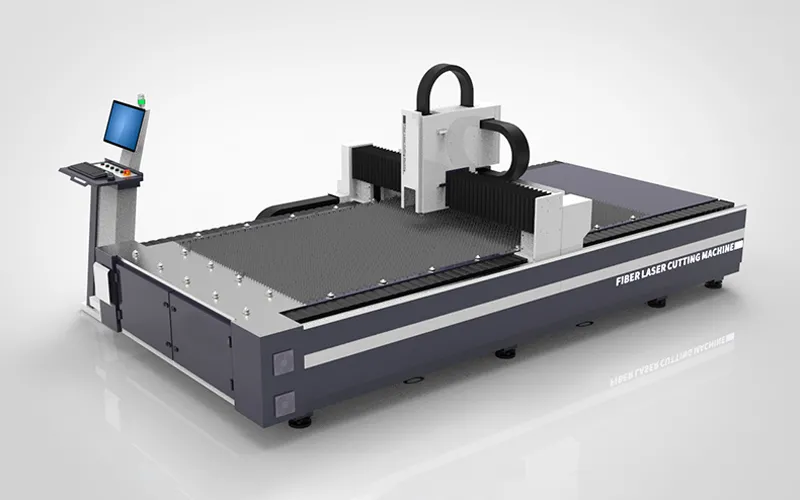

How Does a Fiber Laser Cutting Machine Work? A Complete Practical Guide

A Fiber Laser Cutting Machine is one of the most advanced and efficient tools in modern metal fabrication. It is widely used in industries such as sheet metal processing, automotive manufacturing, kitchen equipment, signage, electronics, and industrial machinery.

But how exactly does a fiber laser cutting machine work? Understanding the working principle helps buyers make better purchasing decisions, improve production efficiency, and avoid common operational mistakes.

This guide explains the full process in a clear, practical way — from laser generation to final cutting.

What Is a Fiber Laser Cutting Machine?

A fiber laser cutting machine uses a high-power fiber laser beam to cut metal materials with extreme precision. The laser energy is generated inside a fiber laser source and transmitted through optical fiber cables directly to the cutting head.

Unlike traditional cutting methods such as plasma or mechanical cutting, fiber laser cutting is a non-contact process. There is no physical force applied to the material. The laser melts or vaporizes the metal using concentrated thermal energy.

Core Components of a Fiber Laser Cutting Machine

To understand how the machine works, it is important to know its main parts:

Fiber laser source

Optical fiber transmission system

Cutting head with focusing lens

CNC control system

Servo motors and motion system

Cooling system (water chiller)

Assist gas system (oxygen, nitrogen, air)

Machine bed and worktable

Each component plays a critical role in achieving accurate and stable cutting.

Step-by-Step Working Process

Step 1: Laser Generation

The process starts inside the fiber laser source. Electrical energy excites rare-earth-doped fiber (usually ytterbium), generating a high-intensity laser beam.

This laser has three important characteristics:

Extremely high energy density

Very small beam diameter

Excellent beam quality

These features allow the laser to concentrate massive power into a tiny focal point.

Step 2: Laser Transmission

The laser beam is transmitted through flexible optical fiber cables. Unlike CO2 lasers that require mirrors, fiber lasers transmit energy directly through fiber.

This provides major advantages:

No beam loss from mirror reflection

No alignment maintenance

More stable power delivery

Lower operating cost

Step 3: Focusing the Laser Beam

The laser reaches the cutting head, where it passes through a collimating lens and a focusing lens.

These lenses concentrate the beam into a very small spot, often less than 0.1 mm in diameter.

At this focal point:

Energy density becomes extremely high

Metal temperature instantly exceeds melting point

Material is cut with minimal heat diffusion

Step 4: Material Interaction

When the focused laser hits the metal surface:

The metal absorbs laser energy

Temperature rises rapidly

Material melts or vaporizes

A narrow kerf (cut line) is formed

This process happens in milliseconds and creates very clean edges.

Step 5: Assist Gas Blowing

Assist gas is blown coaxially with the laser beam through the cutting nozzle.

Common gases include:

Oxygen (for carbon steel)

Nitrogen (for stainless steel and aluminum)

Compressed air (for cost-sensitive cutting)

The gas serves several purposes:

Blows molten metal out of the cut

Improves edge quality

Reduces oxidation

Increases cutting speed

Step 6: CNC Motion Control

The CNC system controls the movement of the cutting head and worktable.

Based on CAD or DXF files:

The machine calculates tool paths

Servo motors drive X, Y, Z axes

The cutting head follows programmed geometry

This enables:

Complex shapes

High repeatability

Mass production with consistent quality

Why Fiber Laser Cutting Is So Precise

Fiber laser machines achieve extremely high precision because:

Laser spot is extremely small

Motion system uses high-resolution encoders

No mechanical contact with material

Minimal thermal deformation

Typical accuracy ranges from ±0.03 mm to ±0.05 mm depending on machine quality.

What Materials Can Be Cut?

A fiber laser cutting machine is mainly used for metal materials, including:

Carbon steel

Stainless steel

Aluminum

Brass

Copper

Galvanized steel

Titanium

It is not suitable for:

Wood

Plastic

Acrylic

Glass

These materials are better processed by CO2 or waterjet systems.

How Thickness Affects the Working Process

Cutting thickness depends on laser power.

Typical examples:

1kW: up to 6 mm carbon steel

3kW: up to 12 mm carbon steel

6kW: up to 20 mm carbon steel

12kW+: up to 40 mm carbon steel

Higher thickness requires:

Slower cutting speed

Higher gas pressure

More stable cooling

Energy Efficiency Advantage

Fiber lasers are extremely energy efficient.

Compared to CO2 lasers:

Fiber efficiency: around 30–40%

CO2 efficiency: around 10%

This means lower electricity bills and smaller cooling systems.

Automation in Fiber Laser Cutting Machines

Modern machines often include:

Automatic loading and unloading systems

Exchange tables

Tower storage systems

Real-time monitoring software

Automation allows:

24-hour production

Reduced labor cost

Higher throughput

Common Misunderstandings About How It Works

Many buyers assume:

Higher power always means better cutting

Any fiber laser can cut all metals equally

In reality:

Cutting quality depends on optics, motion system, and software

Gas selection matters as much as laser power

Poor machine rigidity ruins accuracy regardless of power

Final Thoughts

A Fiber Laser Cutting Machine works by generating a high-energy laser beam, transmitting it through optical fiber, focusing it into a microscopic point, and using controlled thermal energy to melt and remove metal with extreme precision.

It combines:

Advanced optics

CNC motion control

Intelligent software

Energy-efficient laser technology

Understanding how it works helps buyers choose the right machine, optimize production, and avoid costly mistakes. In modern metal fabrication, fiber laser cutting is not just a technology upgrade — it is a fundamental productivity tool.
