Custom signage often involves much more than producing standard alphabet letters. Sign manufacturers may need to fabricate unique fonts, corporate logos, symbols, oversized characters, small-radius curves, sharp corners, and different depths of illuminated letters. The more customized the design becomes, the more difficult it is to maintain consistent dimensions through manual fabrication.
A channel letter bending machine helps solve this challenge by converting digital sign designs into accurately formed metal returns for three-dimensional letters and logos. Modern CNC systems can integrate material feeding, notching or slotting, flanging, bending, and cutting into a controlled production process, reducing the amount of manual forming required.
For sign manufacturers handling custom projects, this means greater design flexibility, more repeatable production, and a more efficient workflow from artwork to finished signage.

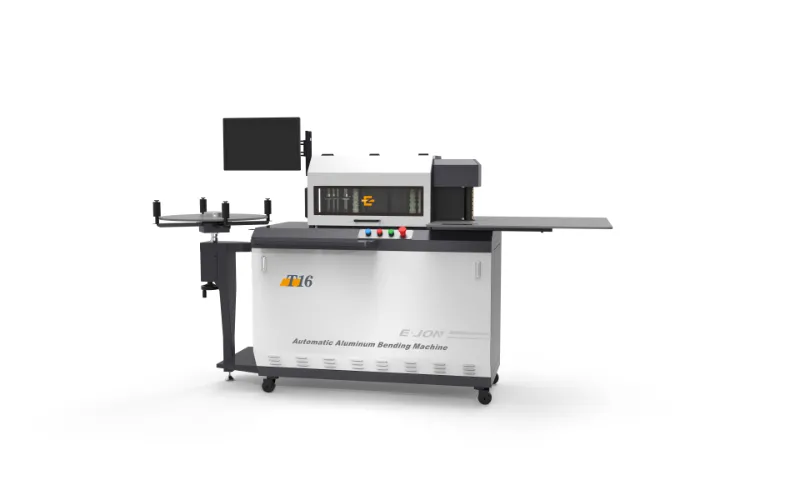

A channel letter bending machine is specialized sign-making equipment used to form the sidewalls, or returns, of three-dimensional channel letters.
In a typical production process, a metal strip or coil is fed through the machine. Based on the imported letter or logo geometry, the control system determines where the material needs to be notched, slotted, bent, or cut. The finished return follows the required character outline and can then be assembled with the sign face, back panel, LEDs, and other components.
Depending on the machine configuration, channel letter benders can process materials such as:
Aluminum coil
Aluminum profiles
Stainless steel
Galvanized steel
Mild steel
Brass or copper on suitable systems
Material capabilities vary considerably between machines, so manufacturers should always match the equipment configuration to the profiles, thicknesses, and letter styles they actually produce. Commercial machines on the market demonstrate support for aluminum, stainless steel, galvanized steel, and other metals, rather than being limited to one universal material specification.
Custom signage creates several manufacturing difficulties that are less obvious when looking only at the finished sign.
A design may contain:
Tight inside corners
Large smooth curves
Narrow characters
Different letter heights
Irregular logos
Complex symbols
Closely spaced bends
Deep or shallow returns
Different metal thicknesses
Mixed letter sizes within one project
When these shapes are fabricated manually, the operator must repeatedly measure, mark, notch, bend, compare, and correct the strip.
Even an experienced fabricator can encounter inconsistencies between one letter and another. Small dimensional errors can affect how the return fits the back panel or face, increasing assembly time and potentially influencing the appearance of the finished sign.
CNC bending changes this process by letting digital geometry guide material forming.
One of the greatest advantages of CNC channel letter production is the connection between design and fabrication.
Instead of manually calculating the position of every bend, the operator can prepare or import the required letter and logo geometry into compatible machine software.
Many modern systems work with common vector-based production files or workflows involving formats such as DXF, AI, and similar sign-design data.
The software analyzes the outline and determines information such as:
Straight sections
Curved sections
Bend positions
Internal and external corners
Material length
Notching positions
The production file then controls the forming sequence.
This is particularly useful for custom logos and non-standard fonts, where manually calculating every bend would require considerable time.
Curves are common in channel letters.
Characters such as:
O
C
S
G
B
P
U
contain curved sections, while customized corporate logos can contain even more irregular contours.
Manual forming depends heavily on operator experience. Too much force can create an overly tight curve, while insufficient bending can leave the return too open.
A CNC-controlled bending mechanism applies movements according to the programmed geometry. This helps manufacturers reproduce curves more consistently across multiple letters.
For branding projects where dozens or hundreds of signs must have the same visual appearance, repeatability becomes especially important.
Custom sign designs do not contain only curves.
Many fonts and logos contain sharp changes in direction, including:
90-degree corners
Acute angles
Narrow V-shaped sections
Closely positioned bends
Small internal corners
The metal often needs to be notched before these bends can be formed correctly.
Modern channel letter systems may combine notching, flanging, bending, and cutting within the same automated workflow.
Correctly positioned notches allow the material to fold more naturally at the required point.
This becomes particularly valuable when manufacturing:
Geometric logos
Block lettering
Serif fonts
Technical symbols
Directional signage
Architectural lettering
The machine therefore expands the range of designs that a sign fabrication workshop can handle efficiently.
Imagine manufacturing signage for a retail chain with stores in dozens of locations.
Each logo may contain the same:
Font
Letter height
Return depth
Corner geometry
Logo proportions
Material specification
If every return is bent manually, dimensional differences can accumulate between batches.
With CNC fabrication, the same production file can be reused.
Once the design and machine parameters have been properly prepared, repeated production becomes much easier to standardize.
This makes automated channel letter bending especially useful for:
Retail chains
Restaurant franchises
Hotel groups
Shopping centers
Corporate identity programs
Automotive dealerships
Banking networks
Multi-location commercial projects
For these applications, consistency is often just as important as production speed.
Traditional channel letter fabrication may require repeated measurement of:
Strip length
Bend location
Corner location
Curve transition
Notch position
Start and finish points
Every additional manual step creates another opportunity for variation.
Automated feeding systems move the material according to programmed distances before each forming operation.
This reduces repetitive measuring and marking.
The operator's role shifts from manually shaping every section toward tasks such as:
Preparing digital files
Selecting material parameters
Loading material
Monitoring production
Checking finished parts
Handling downstream assembly
This can make production easier to standardize across different operators and shifts.
Automation is sometimes associated only with mass production, but channel letter bending equipment can also be valuable for small custom batches.
Consider a sign manufacturer receiving several orders during one day:
A restaurant logo
Four hotel letters
A custom shop name
An illuminated company logo
Several wayfinding characters
Each job has different dimensions and geometry.
With a digital production workflow, the manufacturer can load different files rather than preparing dedicated mechanical tooling for every sign design.
That flexibility makes CNC bending suitable for high-mix, low-volume signage production, where designs change frequently.
The same flexibility becomes valuable when the order volume increases.
For projects involving large quantities of similar letters, repeatedly bending returns by hand can become a production bottleneck.
Automating repetitive processes such as:
Feeding
Notching
Slotting
Bending
Flanging
Cutting
allows skilled workers to concentrate on other operations such as welding, face fabrication, LED installation, assembly, finishing, and quality control.
Automation can therefore improve not only bending productivity but the balance of the entire sign-production line.
Channel letter production is not limited to one construction method.
Depending on the equipment configuration and downstream manufacturing process, automatic bending technology can support several types of signage.
These are among the most common illuminated sign letters.
Typically, LEDs are installed inside the letter and light passes through the front face.
The bending machine produces the return that forms the sidewall of the character.
Applications include:
Storefront signs
Shopping malls
Restaurants
Supermarkets
Office buildings
In reverse channel letters, illumination is directed toward the mounting surface behind the character, creating a halo effect.
Accurate return geometry helps ensure that the fabricated letter matches the intended face and back components.
Commercial CNC systems are specifically offered for reverse/halo as well as conventional channel-letter fabrication.
Modern architectural signage increasingly uses clean, minimal letter designs.
Trimless constructions reduce or eliminate the visible trim traditionally positioned around the letter face.
Producing these letters places greater emphasis on accurately formed components because alignment affects the final visual finish.
Channel letter bending equipment can also support dimensional letters that do not contain internal lighting.
These can be used for:
Interior branding
Reception walls
Exhibitions
Decorative signage
Building identification
Directional systems
Different sign projects can require different materials.
Aluminum is widely used because it combines:
Relatively low weight
Good corrosion resistance
Easy forming
Outdoor suitability
Availability in different finishes
It is commonly used for LED channel letter returns.
Stainless steel is often selected where the sign requires:
Higher structural rigidity
Premium appearance
Metallic finishes
Outdoor durability
Architectural aesthetics
Because stainless steel generally requires greater forming force than thin aluminum, the machine must be specifically designed for the required stainless-steel grade and thickness.
Galvanized steel can be selected for particular structural or cost-driven applications.
Again, feed mechanisms, cutting tools, and bending capacity must match the material.
A manufacturer processing several material types should therefore consider a multi-material channel letter bending machine rather than selecting equipment based only on maximum bending speed.
| Factor | Manual Fabrication | CNC Channel Letter Bending |
|---|---|---|
| Bend positioning | Operator measured | Software controlled |
| Repeated designs | Requires repeated manual work | Production files can be reused |
| Complex logos | Labor intensive | Suitable for digital forming |
| Repeatability | Depends heavily on operator | More consistent |
| Notching | Frequently separate/manual | Can be integrated |
| Material feeding | Manual | Automatic on CNC systems |
| Production scaling | Labor dependent | Easier to scale |
| Custom orders | Flexible but labor intensive | Digitally flexible |
| Operator dependence | High fabrication skill required | Greater focus on programming and setup |
Manual fabrication still has a place in very low-volume workshops or unusual one-off work. However, as product variety and production volume increase, automated bending can help remove repetitive fabrication tasks.
Material waste is another important consideration in sign manufacturing.
Manual production may create scrap because of:
Incorrect bend positions
Excess strip length
Failed curves
Incorrect notch locations
Rework after poor fit
Measurement mistakes
A CNC-controlled workflow calculates forming positions from the production geometry before the part is fabricated.
Better process repeatability can reduce avoidable errors and improve material utilization.
This becomes increasingly important when processing higher-value materials such as stainless steel or specialty finished aluminum.
The benefit of accurate bending does not stop when the formed return leaves the machine.
The quality of the return affects subsequent processes.
If the sidewall follows the digital outline accurately, aligning it with a CNC-cut or laser-cut back panel becomes easier.
Accurate return geometry also helps the front face follow the intended character shape.
Poorly formed returns may require operators to:
Rebend corners
Adjust curves
Trim material
Modify joints
Force components into alignment
Reducing these corrections can improve total production efficiency.
This is why buyers should evaluate a bending machine based on finished-part consistency, not merely the nominal bending speed.
Typical users include:
Factories producing illuminated letters in medium or large quantities are the most obvious users.
Advertising suppliers may produce storefront logos, brand displays, and promotional signage for corporate customers.
Architectural projects frequently require custom fonts, metallic finishes, large lettering, and precise geometric designs.
Retail brands often require consistent signage across many stores, making repeatable CNC production particularly valuable.
Manufacturers producing signage for distributors or overseas customers need flexible equipment capable of handling different client designs without changing the entire manufacturing setup.
Not every automatic bender is suitable for every sign factory.
Several specifications should be evaluated carefully.
Confirm whether the machine can process the materials used in your factory, including the relevant grades and profiles.
A machine designed primarily for thin aluminum may not be suitable for heavier stainless-steel fabrication.
Never judge capability simply by the statement that a machine "supports stainless steel." Ask for the acceptable thickness and width range.
Check the supported strip or profile height.
This is particularly important when producing deep channel letters or large outdoor signs.
If your business frequently produces small letters or complicated logos, the minimum achievable radius can be more important than maximum processing speed.
Ask how the machine produces:
Internal corner notches
External corner notches
V grooves
Slots
Flanging structures
Different letter designs may require different cutting mechanisms.
Material must arrive at the bending point at the correct position.
Consistent feeding is therefore essential for maintaining the relationship between bend locations and the overall character geometry.
Check how production files are imported and processed.
Useful questions include:
Which file formats are supported?
Can files be imported from common sign-design software?
Can bend parameters be edited?
Can different materials have separate parameter libraries?
Can frequently produced jobs be saved?
Custom production often involves switching between:
Aluminum and stainless steel
Different strip heights
Different thicknesses
Different letter sizes
Efficient parameter management helps shorten the transition between jobs.
The machine itself is only one part of the investment.
Buyers should also evaluate:
Installation support
Operator training
Software guidance
Remote troubleshooting
Spare parts supply
Maintenance documentation
Upgrade support
Commercial suppliers increasingly emphasize installation, training, software updates, and technical support alongside the machine because successful production depends on the entire system rather than the hardware alone.
When comparing channel letter bending machines, specifications alone may not reveal how the machine performs with your actual signs.
A more useful evaluation is a sample bending test.
Provide the supplier with several representative files, ideally including:
A curved letter
A sharp-cornered letter
A narrow character
A complicated logo
A large letter
Your normal production material
Then evaluate:
Shape accuracy
Bend quality
Corner quality
Material surface condition
Repeatability
Processing workflow
Ease of assembly after bending
Testing your own production files provides much more meaningful information than watching a machine manufacture only a simple demonstration letter.
Growing a custom signage business requires more than simply increasing machine speed.
The production system must be capable of handling more orders without creating proportional increases in manual work.
A CNC channel letter bending machine supports scaling by creating a more standardized process:
Design file → parameter setup → automatic feeding → notching → bending → cutting → inspection → assembly
Once this workflow is established, manufacturers can process a wider range of customer designs while maintaining greater consistency.
Production knowledge also becomes easier to retain because part of the manufacturing process is stored digitally rather than existing only in the experience of individual fabricators.
For factories serving OEM customers, international distributors, retail programs, or multi-location signage projects, that process standardization can be particularly valuable.
Yes. CNC channel letter bending machines are particularly useful for custom logos because the production path is generated from digital geometry. Actual capability depends on the logo complexity, minimum bend radius, material, and machine configuration.
Yes. Because the bending geometry comes from the letter outline rather than a fixed physical mold, manufacturers can produce many fonts and custom character designs.
Aluminum is one of the most common materials. Depending on the machine, stainless steel, galvanized steel, mild steel, brass, copper, or specialized aluminum profiles may also be supported. Always verify the permitted thickness, width, and profile type.
Yes. CNC production can be useful for short runs because new designs can be introduced digitally without manufacturing dedicated forming molds for every letter.
Potentially, but the usable size range depends on return height, minimum bend radius, feeding mechanism, and other mechanical limitations. Manufacturers producing both very small and unusually large letters should verify these limits before purchasing.
No. Bending is only one stage of channel letter manufacturing. Depending on the sign structure, downstream operations may still include welding, riveting, bonding, face preparation, back-panel fabrication, LED installation, wiring, sealing, finishing, and final inspection.
The primary value of automation is reducing repetitive return-forming work and improving process consistency.
Many modern systems can work with vector-based manufacturing files such as DXF, AI, PLT, or machine-specific converted files, although supported formats vary by manufacturer. Always confirm software compatibility before purchasing.
Both matter, but sign manufacturers should prioritize usable finished-part quality and consistency. A machine that bends quickly but creates parts requiring frequent manual correction may not improve overall factory productivity.
A channel letter bending machine supports custom signage production by turning complex digital designs into repeatable metal letter returns with less repetitive manual forming.
Its value becomes especially clear when manufacturers need to produce:
Custom fonts
Complex logos
Curved letters
Sharp geometric characters
Different letter sizes
Multiple return depths
Different metal materials
Small customized batches
Repeated signage for multi-location projects
By integrating operations such as feeding, notching, bending, flanging, and cutting, CNC bending technology can shorten the path from design to assembly while improving consistency between parts.
For sign manufacturers evaluating new production equipment, however, the right machine should not be chosen based on automation alone. Material compatibility, bending range, minimum radius, software flexibility, finished-part accuracy, maintenance, and supplier support should all be considered.
The best channel letter bending solution is ultimately the one that can reliably reproduce the real fonts, logos, materials, and production volumes your customers require.
Hot Products
Equipped with full servo control system to ensure the accuracy and stability of feeding, slotting, and bending function.
Manipulator alternately feeding structure, the material clamps are casted which can avoid scratching the matenial, mean while improving the feeding holding.
Productive: Cutting, Notching, Flanging, Bending & Shearing. All the functionl will short the letter making time.
Adaptable: can process all kinds of materials used in making sign letters, such as stainless steel, galvanized steel, flat aluminum, profile aluinum and channelume.
EJON Sanding-Deburring Machine-YZ1000G
Application: remove solid slag and burrs on the surface of workpiece; remove rust and oxide layer on the surface of the workpiece; Round the internal and external contours at the edge of metal sheet.
EJON Sanding-Deburring Machine-YZ1000S
Application: remove solid slag and burrs on the surface of workpiece; remove rust and oxide layer on the surface of the workpiece; Round the internal and external contours at the edge of metal sheet.
EJON Sanding-Deburring Machine-YZ1000SS
Supporting laser cutting machine, CNC stamping, various CNC processing or other machining deburring front production line.
EJON Sanding-Deburring Machine
Supporting laser cutting machine, CNC stamping, various CNC processing or other machining deburring front production line.
Industries: metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing Agriculture and forestry machinery
Laser Welding Machine-300watt/500watt
YAG laser transmission welding, 5 meter fiber optic tube, high temperature resistance handheld laser welding handheld.
