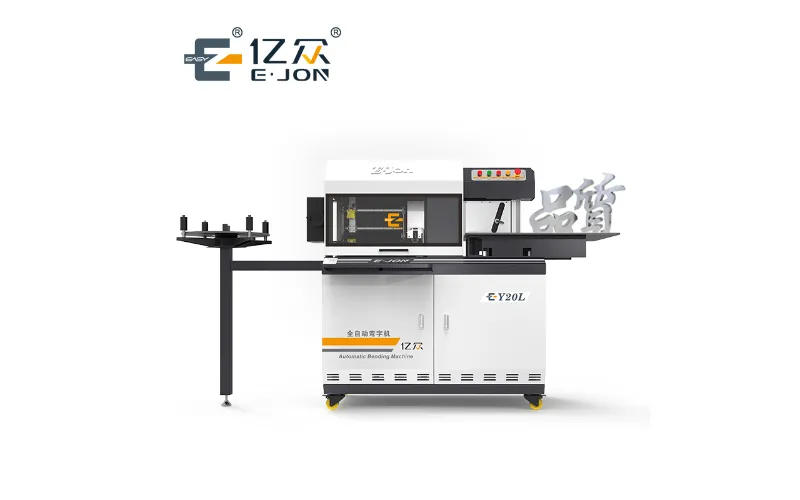

How Does a Channel Letter Bending Machine Improve Sign Quality?

Channel letters are widely used for storefront signs, shopping centers, hotels, restaurants, office buildings and other commercial identification projects. Whether a sign is front-lit, reverse-lit, trimless or built with a traditional trim cap, the appearance of the finished letter depends heavily on the accuracy of its sidewall.

In sign-industry terminology, the side of a channel letter is called the return. The return must follow the shape of the letter face and back closely. Inaccurate bending can produce uneven gaps, distorted corners, poor-fitting joints and inconsistent letter depths.

A channel letter bending machine improves sign quality by automating the feeding, notching, cutting and bending of aluminum or metal strips. Instead of relying entirely on manual measurements and operator judgment, the machine follows a digital design file and forms the return according to the programmed contour.

The result is not simply faster production. A properly selected and calibrated channel letter bending machine can improve dimensional accuracy, corner definition, joint quality, illumination consistency and overall visual uniformity.

What Is a Channel Letter Bending Machine?

A channel letter bending machine, also called a channel letter bender or letter bending machine, is designed to form metal strips into the sidewalls of three-dimensional letters and logos.

Depending on the machine configuration, it may complete several operations automatically:

• Feeding the metal strip

• Measuring the required length

• Cutting or notching bending positions

• Forming inside and outside corners

• Creating flanges

• Bending curves and straight sections

• Cutting the completed return

Modern CNC channel letter bending machines usually import vector files such as AI, DXF or PLT. The control software interprets the letter contour and converts it into feeding distances, notch locations and bending angles. Automatic models are commonly designed to combine feeding, slotting and bending in one workflow.

The completed return can then be assembled with the letter face and back before welding, clinching, adhesive bonding or other joining processes.

Why Return Accuracy Matters to Sign Quality

Customers normally evaluate a finished sign from the front, but many visible quality problems begin with an inaccurately formed return.

A poorly bent return may cause:

• Misalignment between the face, back and sidewall

• Uneven letter depth

• Open or oversized corner gaps

• Wavy straight sections

• Distorted curves

• Poorly closed joints

• Visible light leakage

• Difficult welding or clinching

• Inconsistent spacing between letters

• An unprofessional appearance after installation

These problems become especially noticeable in illuminated signs. Even a small dimensional difference can affect how the acrylic face fits, how the LED light is distributed and how the letter appears at night.

Automated bending helps control these variables before the letter reaches the assembly stage.

1. More Accurate Matching Between the Return and Letter Face

One of the most important quality advantages of a channel letter bending machine is its ability to form the return according to the original digital contour.

During manual fabrication, an operator may need to measure the perimeter, mark bending positions and estimate how much material will be consumed at each corner. Small measuring errors can accumulate around the letter, causing the return to become too long, too short or slightly different from the routed face.

An automatic machine uses the same or a compatible vector file used to cut the letter face and back. It calculates where the strip should feed, notch and bend.

This creates a closer match between:

• The acrylic or metal face

• The back panel

• The channel letter return

• Internal openings

• Curved sections

• Corner positions

Some industrial channel letter benders specify positioning precision below 0.1 mm, although actual accuracy depends on the model, material, calibration, tooling condition and design complexity.

Better contour matching reduces the amount of adjustment required during assembly and makes it easier to maintain the intended font proportions.

2. More Consistent Bending Angles

Sharp corners are among the most difficult parts of channel letter fabrication.

If the bending angle is too open, the corner may not align with the face. If it is too tight, the return can deform, buckle or create excessive stress around the notch. Different operators may also produce slightly different angles when making the same design manually.

A CNC channel letter bending machine controls each bend according to programmed parameters. Once the correct settings have been established, the machine can repeat the same angle across multiple letters.

This is particularly valuable when producing:

• Repeated company logos

• Chain-store signage

• Multiple sign sets for one project

• Large quantities of identical letters

• Letters containing many sharp angles

• Complex geometric symbols

Consistent bending angles make the completed sign look like one coordinated system rather than a collection of separately fabricated parts.

3. Cleaner Inside and Outside Corners

Corner appearance has a major effect on perceived sign quality.

An automatic machine can notch or slot the material before bending it. The location, width and depth of the notch are controlled according to the required angle and material properties. Appropriate notching allows the strip to fold without excessive overlap, resistance or deformation.

Depending on the machine, notching may be performed with:

• A milling cutter

• A saw blade

• A knife-style tool

• A V-notching mechanism

• Double-sided slotting tools

Some systems support adjustable slotting angles so the machine can process different aluminum profiles and corner geometries. One commercial aluminum bender, for example, specifies a slotting range from 45 to 135 degrees.

When the notch and bend are correctly coordinated, manufacturers can obtain:

• Tighter corner closure

• Less visible deformation

• Smaller assembly gaps

• More accurate letter outlines

• Cleaner welding or bonding areas

• Better-looking illuminated corners

However, the finished result still depends on selecting the correct tool and entering suitable compensation values for the material.

4. Better Curve Reproduction

Letters such as B, C, G, O, P, Q, R and S contain curves that are difficult to reproduce consistently by hand. Logos may contain even more complex arcs, spirals and changing radii.

With manual bending, operators often form a curve through a sequence of small adjustments. The result depends heavily on experience. It is easy to create a curve that appears uneven, segmented or slightly different from the digital artwork.

A CNC channel letter bender uses controlled incremental feeding and bending movements. Instead of making one uncontrolled large bend, it produces a calculated series of smaller bends to approximate the required radius.

A suitable machine can therefore produce:

• Smoother circular letters

• More symmetrical curves

• Better transitions between straight and curved sections

• More accurate logo contours

• More repeatable small-radius bends

• Fewer visible flat spots

The machine’s minimum bending radius remains important. A model intended for large outdoor letters may not reproduce small, tightly curved characters as well as a machine designed for miniature or trimless letters.

5. More Uniform Letter Depth

Channel letter depth affects structural appearance, illumination, mounting and brand consistency.

When returns are cut or bent manually, depth can vary because of inaccurate strip preparation, material movement or inconsistent handling. Even small differences can become visible when several letters are installed next to one another.

A channel letter bending machine feeds coil or profile material with a controlled and uniform width. This helps maintain the same return depth throughout the letter and across an entire sign set.

Uniform letter depth provides several quality advantages:

• Letters sit at a consistent distance from the wall

• Front faces align more evenly

• Halo-lit letters produce a more uniform glow

• Mounting hardware can be positioned more consistently

• The complete sign appears cleaner from side viewing angles

• Packaging and installation become more predictable

For projects containing dozens or hundreds of letters, this uniformity can significantly improve the final presentation.

6. Improved Joint Fit and Closure

Most channel letter returns contain at least one joint where the two ends of the formed strip meet.

If the return length is inaccurate, the joint may overlap or leave a visible gap. The fabricator may need to cut, grind, stretch or rebend the material before welding or fastening it.

Automatic feeding allows the machine to control the developed length of the return more precisely. Correct compensation for bends and material thickness helps the two ends meet more accurately.

A well-fitted joint can improve:

• Welding consistency

• Adhesive bonding

• Clinching strength

• Seam appearance

• Water resistance

• Light control

• Assembly speed

The joint position can also be planned in a less visible or more structurally suitable area of the letter.

No bending machine can guarantee a perfect seam without proper setup. Feed calibration, blade wear, strip slippage and incorrect software compensation can all affect the final return length.

7. Reduced Surface Scratching and Material Damage

Decorative channel letter materials may have brushed, polished, painted or prefinished surfaces. Scratches, dents and roller marks can reduce the value of the finished sign.

Manual handling introduces several opportunities for surface damage. Operators may drag the strip across a workbench, clamp it too tightly or repeatedly reposition it while forming complex contours.

A properly designed automatic bending system controls the strip through guided feeding and bending components. Some commercial machines use specialized bending blades and low-interference mechanisms intended to reduce scratching during the bending process.

Surface quality can also be protected by:

• Keeping feed rollers clean

• Using suitable pressure settings

• Removing metal chips around the cutting system

• Maintaining smooth material guides

• Retaining protective film where possible

• Matching the bending tool to the profile

• Avoiding excessive clamping force

Automation reduces unnecessary handling, but regular cleaning and maintenance are still necessary to prevent surface marks.

8. More Consistent Illumination

A channel letter bending machine does not install LEDs, but the accuracy of the return affects how the finished letter is illuminated.

For front-lit channel letters, an accurately formed return helps the acrylic face fit correctly. Large gaps or distorted contours may allow light to escape around the edge.

For reverse channel letters, consistent return depth helps maintain a uniform distance between the letter and mounting surface. That distance influences the shape and intensity of the halo.

Accurate return fabrication supports:

• Better-fitting faces

• Reduced edge light leakage

• More consistent internal volume

• Uniform LED-to-face distance

• More even halo spacing

• Cleaner nighttime letter outlines

Illumination quality also depends on LED spacing, module selection, power supply design, interior reflectivity and installation conditions. The bending machine improves the letter structure on which these lighting components depend.

9. Greater Consistency Across Repeat Orders

A sign shop may need to reproduce the same customer logo months or years after the original project.

Manual fabrication can make repeatability difficult. The original operator may no longer be available, and written measurements may not capture every bending decision made during production.

With a CNC bending machine, the shop can store:

• Original vector files

• Material parameters

• Feeding compensation

• Notching settings

• Bending corrections

• Profile information

• Production notes

When the customer orders another sign, the operator can reuse the approved file and settings.

This is especially beneficial for:

• Retail chains

• Hotel groups

• Franchise businesses

• Banks

• Automotive dealerships

• Fuel stations

• Multi-location corporate signage

Repeatability protects the customer’s visual identity and reduces differences between signs installed at separate locations.

10. Less Manual Rework

Rework is not only a production cost. It can also affect sign quality.

Repeatedly bending, straightening, cutting and grinding a return may weaken the material or damage its finish. An operator trying to correct one section can unintentionally distort another section.

Automatic fabrication improves first-pass accuracy, reducing the need for:

• Manual rebending

• Corner correction

• Return shortening

• Gap filling

• Surface grinding

• Face modification

• Additional welding

• Replacement of damaged strips

Less rework helps preserve the original material finish and reduces variation between letters.

11. Better Quality in Batch Production

Manual fabrication can produce excellent results when performed by a highly skilled craftsperson. The challenge is maintaining that standard across large production runs.

Fatigue, operator differences and time pressure can cause quality to change during the day. The first letter in a batch may not exactly match the fiftieth.

An automatic channel letter bender performs the programmed sequence consistently. This allows the sign manufacturer to maintain more stable quality during:

• Long production shifts

• High-volume contracts

• Multi-letter sign projects

• Repeat logo production

• Short delivery schedules

Automation does not eliminate operator responsibility. It shifts the operator’s role from manually forming every letter to controlling files, settings, calibration and inspection.

Factors That Determine Finished Sign Quality

Purchasing a channel letter bending machine does not automatically guarantee premium-quality letters. The following factors must also be controlled.

Digital File Quality

The machine follows the imported design. Duplicate nodes, open paths, overlapping lines and poorly converted fonts can create unnecessary bends or incorrect feeding commands.

The artwork should be cleaned before production.

Machine Calibration

Feed length, bending position, blade alignment and compensation values must be checked regularly. A small calibration error can accumulate around a complex letter.

Material Parameters

Aluminum, stainless steel, galvanized steel, copper and different profiles do not bend in the same way. Each material may require different pressure, notch depth and springback compensation.

Tool Condition

Worn blades and milling cutters can produce rough notches, oversized slots and inaccurate corners. Channel letter bender cutting and slotting tools are consumable components that require inspection and replacement.

Operator Training

The operator should understand vector files, material selection, calibration, tool replacement and quality inspection. A simple interface reduces the learning curve, but process knowledge remains important.

Downstream Assembly

An accurately bent return can still produce a poor-quality sign if the face is incorrectly cut, the weld is weak or the LEDs are badly arranged. Bending should be integrated with the complete channel letter production process.

How to Choose a Machine for Better Sign Quality

When evaluating an automatic channel letter bending machine, buyers should look beyond maximum production speed.

Important quality-related specifications include:

• Supported materials

• Material thickness range

• Coil or profile height

• Minimum bending radius

• Feeding accuracy

• Notching method

• Supported file formats

• Sharp-corner capability

• Flanging capability

• Tool-change requirements

• Surface-protection design

• Calibration procedure

• Software parameter control

• Availability of spare parts

• Technical training and support

A machine used mainly for narrow aluminum trimless letters has different requirements from a machine used for deep stainless steel sky signs. Commercial models may support return depths from relatively narrow profiles to approximately 300 mm, depending on machine design.

The correct machine should be selected according to the actual sign types, materials and letter sizes produced by the factory.

Quality-Control Checklist After Bending

Before moving a formed return to welding or assembly, inspect:

1. Whether the return matches the routed face.

2. Whether straight sections remain straight.

3. Whether curves are smooth and symmetrical.

4. Whether corner angles match the drawing.

5. Whether internal corners are fully formed.

6. Whether the joint closes without excessive force.

7. Whether the return depth remains consistent.

8. Whether the material surface has scratches or dents.

9. Whether the notches are clean and correctly positioned.

10. Whether the letter lies flat without twisting.

11. Whether the protective coating remains intact.

12. Whether the completed profile meets project tolerances.

Recording inspection results helps operators identify whether a defect comes from the digital file, machine calibration, tooling or material.

Frequently Asked Questions

Can a channel letter bending machine make every type of letter?

It can produce many standard channel letters and logos, but capability depends on material type, thickness, profile width, minimum bending radius and machine configuration. Extremely small corners, oversized letters or unusual profiles may require manual processing.

Does automatic bending completely replace skilled workers?

No. It reduces repetitive manual forming, but skilled personnel are still needed for artwork preparation, machine setup, inspection, welding, LED installation and final assembly.

Can the same machine process aluminum and stainless steel?

Some models process both materials, while others are designed primarily for aluminum profiles. Buyers should verify material compatibility, maximum thickness, bending torque and notching method before purchasing.

Why does the return not perfectly match the letter face?

Possible causes include an incorrect vector file, feed-length calibration errors, material slippage, springback, worn tools or incorrect compensation settings.

Does a faster bending speed improve quality?

Not necessarily. High speed improves output only when the machine remains accurate. Complex curves, thick materials and sharp corners may require slower settings to maintain quality.

How often should the machine be calibrated?

Calibration frequency depends on production volume, material changes, tool wear and machine design. Operators should check accuracy whenever a new material is introduced, a tool is replaced or completed returns begin to deviate from the face.

Conclusion

A channel letter bending machine improves sign quality by controlling how the return is measured, notched and formed. It helps the finished sidewall match the digital contour more closely, produces more consistent corners and curves, maintains uniform letter depth and reduces joint-fitting problems.

These improvements can lead to cleaner assembly, more consistent illumination, fewer surface defects and better repeatability across large orders.

However, machine automation is only one part of quality channel letter production. The best results come from combining reliable bending equipment with clean design files, correct material parameters, regular calibration, sharp tooling and careful final inspection.

For sign manufacturers producing repeated logos, illuminated letters or high-volume commercial signage, automatic channel letter bending provides a practical way to improve both production consistency and the professional appearance of the finished sign.
