Automation Benefits of Sanding Deburring Machines in Sign Production

Modern sign manufacturing increasingly relies on laser cutting, CNC routing, punching, shearing, and other automated processes to produce metal letters, logos, panels, frames, and decorative components. While these technologies improve cutting speed and design flexibility, the cutting process can leave behind burrs, sharp edges, slag, oxidation, or inconsistent surface marks.

These defects may appear minor, but they can create problems during handling, welding, painting, powder coating, bonding, and final assembly.

Traditionally, sign manufacturers have removed burrs and finished edges manually using angle grinders, sanding tools, files, or handheld abrasive equipment. This approach can work for occasional jobs, but it becomes increasingly inefficient as production volume and customization increase.

An automated sanding deburring machine provides another approach. By combining controlled material feeding with abrasive belts, brushes, grinding heads, or edge-rounding units, it can process large quantities of metal sign components with more consistent results.

Automated deburring systems are widely used in sheet metal fabrication to remove burrs, round edges, eliminate slag, improve surface finish, and prepare parts for downstream coating, welding, or assembly.

For sign manufacturers, this can translate into faster finishing, more uniform quality, safer handling, and a more streamlined workflow from metal cutting to finished signage.

Why Is Deburring Important in Sign Manufacturing?

A metal part is rarely completely finished when it comes off a laser cutter or punching machine.

Depending on the material and cutting process, the component may still contain:

• Sharp cutting edges

• Small burrs

• Laser-cutting residue

• Oxide layers

• Dross or slag

• Surface scratches

• Uneven edge conditions

• Heat-affected surface marks

These issues can affect several stages of signage production.

For example, a sharp burr can injure an operator during assembly. An uneven edge may interfere with fitting two components together. Surface contamination or oxidation may reduce the quality of subsequent coating.

Deburring therefore performs several functions at the same time:

cutting → deburring → edge finishing → surface preparation → fabrication → coating → assembly

Rather than treating sanding as merely cosmetic, sign manufacturers should consider it an important intermediate production process.

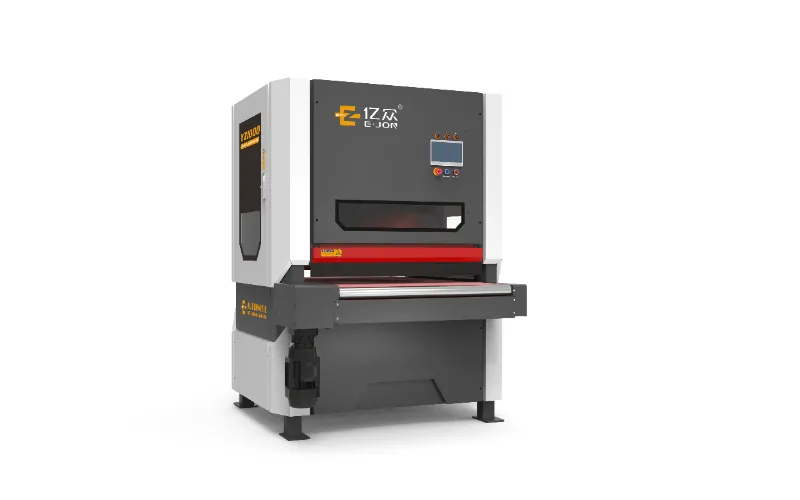

What Is a Sanding Deburring Machine?

A sanding deburring machine is industrial finishing equipment designed to automatically process flat or formed metal components after cutting.

Depending on the machine configuration, it may use:

• Wide abrasive belts

• Sanding rollers

• Rotating abrasive brushes

• Multi-directional brush heads

• Grinding units

• Scotch-Brite-type finishing materials

• Oxide-removal brushes

The workpiece passes through the machine on a conveyor while the sanding or brushing units remove unwanted material.

Some machines primarily perform heavy burr removal, while others combine several operations such as:

1. Burr removal

2. Edge rounding

3. Oxide removal

4. Surface sanding

5. Decorative finishing

Machines using combinations of wide sanding belts and multi-directional brushes can process exterior edges, contours, and openings while providing a more consistent finish than individual manual grinding operations.

Where Are Sanding Deburring Machines Used in Sign Production?

The technology can support many metal components found in signage manufacturing.

Typical applications include:

Metal Sign Panels

Laser-cut or CNC-machined aluminum, stainless steel, and steel panels often require edge finishing before coating or installation.

Dimensional Letters

Metal letters may need burr removal before welding, bonding, painting, or assembling the sidewalls and backs.

Channel Letter Components

Laser-cut channel letter backs and metal components can benefit from removing sharp cutting edges before assembly.

Stainless Steel Letters

Stainless steel signage often requires especially careful finishing because the visible surface forms part of the final appearance.

Metal Logos

Custom logos frequently contain complicated external contours and internal cutouts that are time-consuming to finish manually.

Wayfinding Signs

Commercial buildings, hospitals, airports, hotels, and office complexes may require hundreds of metal sign components with similar edge-quality requirements.

Architectural Signage

Large exterior letters, decorative panels, pylons, directories, and façade signage can involve significant amounts of fabricated sheet metal.

As order quantities increase, manual sanding can become a production bottleneck.

1. Automated Deburring Reduces Repetitive Manual Grinding

One of the clearest advantages of automation is reducing the amount of hand grinding required.

Traditional manual processing may involve an operator picking up every component and using:

• An angle grinder

• Orbital sander

• Hand file

• Abrasive wheel

• Sandpaper

• Portable polishing tool

The operator then has to treat different edges one at a time.

For complicated logos or large batches, this requires considerable labor.

Automated equipment allows multiple edges and surfaces to be processed as the workpiece travels through the machine.

This changes the operator's role from continuously grinding every component to activities such as:

• Loading parts

• Selecting processing parameters

• Monitoring machine operation

• Inspecting finished parts

• Sorting parts for downstream production

Automated deburring is widely adopted in metal fabrication specifically because manual finishing is labor-intensive and difficult to keep consistent across operators.

For sign factories experiencing increasing laser-cutting capacity, automating finishing can help prevent the deburring section from becoming the next production bottleneck.

2. More Consistent Edge Quality Across Sign Components

Manual grinding depends heavily on the operator.

Two workers may apply different:

• Pressure

• Grinding angles

• Processing speeds

• Abrasive contact times

• Numbers of passes

Even the same operator may achieve slightly different results from the first component to the hundredth.

Automated sanding allows the manufacturer to establish repeatable processing parameters.

Depending on the machine, these can include:

• Conveyor speed

• Sanding belt speed

• Brush speed

• Contact pressure

• Grinding depth

• Abrasive specification

• Number of processing stations

Consistent pressure is one of the major reasons automated deburring can deliver more repeatable finishes.

This becomes especially valuable in signage projects involving repeated components.

For example, a retail chain may require identical signs for dozens of stores. Automated finishing helps ensure that the same logo components receive similar edge treatment across different production batches.

3. Faster Processing for Batch Sign Production

Custom signage does not always mean one-piece production.

Many B2B sign manufacturers handle orders such as:

• 100 hotel room signs

• 50 retail logos

• Multiple letters for shopping centers

• Repeated directional signs

• Franchise storefront signage

• Corporate identity projects

• Multi-building wayfinding systems

Laser cutting can produce these components quickly, but manual deburring may not match the output of the cutting machine.

This creates a mismatch:

fast laser cutting + slow manual finishing = production bottleneck

Automated sanding and deburring helps balance the workflow.

Instead of processing every edge individually, components can move continuously through the finishing machine.

Manufacturers of automated deburring equipment emphasize throughput and repeatability as key benefits compared with manual grinding, particularly in higher-volume sheet metal operations.

4. Better Preparation for Powder Coating and Painting

Many metal signs are painted or powder coated after fabrication.

Before coating, the metal surface should be sufficiently clean and the edges should be properly prepared.

Sharp edges create a particular problem.

Coatings often have greater difficulty building a uniform film around extremely sharp corners. Edge rounding can therefore help create more suitable conditions for subsequent finishing.

Deburring equipment manufacturers specifically use edge rounding and oxide removal as preparation processes for painting and powder coating. Rounded edges can improve coating coverage, while removing cutting oxidation helps improve adhesion.

For signage, this can be relevant to:

• Powder-coated aluminum letters

• Painted steel sign cabinets

• Exterior metal logos

• Directional sign panels

• Pylon sign components

• Architectural metal signage

A better-prepared component can also reduce the amount of corrective sanding required immediately before coating.

5. Safer Handling of Metal Sign Components

Freshly laser-cut sheet metal can have extremely sharp edges.

This creates risks during:

• Sorting

• Stacking

• Welding

• Bending

• Riveting

• Assembly

• Packaging

• Installation

Employees may handle each sign component several times before it reaches the customer.

Removing sharp edges earlier in the production process makes subsequent operations safer and easier.

Automated edge rounding is widely used partly because it reduces the handling hazards associated with sharp laser-cut components.

This benefit is particularly important for manufacturers producing large letters, thin aluminum panels, or stainless-steel components that are frequently handled manually.

6. Improved Preparation for Welding and Assembly

Sanding deburring is not only about creating a visually smooth edge.

It can also support fabrication accuracy.

Burrs and cutting residue may interfere with:

• Part positioning

• Corner alignment

• Welding

• Mechanical fastening

• Adhesive bonding

• Component stacking

Consider a fabricated metal sign cabinet.

The laser cutter may produce the front plate, rear plate, internal brackets, and supporting components accurately. However, if burrs remain along contact surfaces, operators may need to manually correct each part before assembly.

Automated deburring helps create cleaner components before they reach fabrication stations.

Industrial deburring systems are commonly positioned as preparation equipment for subsequent welding and assembly for this reason.

7. Better Results for Complex Logos and Cut-Out Designs

Custom signage frequently involves far more complicated geometry than ordinary rectangular sheet metal components.

A company logo may include:

• Internal cutouts

• Small holes

• Curved outlines

• Narrow sections

• Sharp corners

• Repeated patterns

Hand-finishing these designs can require considerable time.

Certain multi-directional brush systems are designed to contact edges and contours from several directions, allowing both external outlines and internal openings to receive edge treatment.

This can make automatic deburring particularly valuable for custom laser-cut logos and decorative metal panels.

However, machine selection is important. Manufacturers should verify minimum part dimensions, hole sizes, material thicknesses, and geometry limitations before assuming every design can be processed automatically.

8. Reduced Dependence on Individual Operator Skill

Manual sanding is a skill.

An experienced worker knows how much pressure to apply and when to stop.

But this also means finished quality can depend heavily on the availability of particular employees.

Automation transfers part of this knowledge into controlled machine parameters.

For example, once suitable settings have been determined for:

2 mm aluminum + laser-cut lettering + coating preparation

the same process can potentially be repeated for later orders using similar materials.

This makes production easier to standardize.

It does not eliminate the need for skilled employees. Instead, skills shift toward:

• Process setup

• Abrasive selection

• Parameter optimization

• Inspection

• Machine maintenance

• Quality control

For growing sign factories, this can make production less dependent on having an experienced worker manually finish every component.

9. Supports High-Mix Custom Sign Manufacturing

A sign factory may produce stainless steel logos in the morning, aluminum wayfinding panels in the afternoon, and steel structural components later the same day.

Automation therefore needs to support more than mass production of one identical part.

Modern deburring systems can be configured for relatively flexible sheet metal processing, and automated cells are increasingly intended for high-variety as well as high-volume production.

The key is having adjustable settings for different:

• Materials

• Thicknesses

• Burr sizes

• Surface requirements

• Edge-rounding requirements

This flexibility is important for signage manufacturers because every project can have different specifications.

10. Supports More Consistent Visible Surface Finishing

Some signs require more than simply removing sharp edges.

Visible stainless steel or aluminum may require a defined surface appearance.

Depending on the abrasive system, an industrial sanding machine can help create:

• Uniform sanding marks

• Brushed surfaces

• Hairline-style finishes

• Pre-polishing surfaces

• Consistent matte finishes

This can be useful for:

• Stainless steel letters

• Metal plaques

• Reception signs

• Architectural logos

• Decorative panels

However, decorative finishing requires careful process control.

A machine configured for aggressive burr removal is not automatically suitable for producing a high-quality decorative finish.

Sign manufacturers should therefore define whether the primary requirement is:

deburring, edge rounding, surface sanding, decorative finishing—or a combination of these processes.

Manual Deburring vs. Automated Sanding Deburring

Manual finishing remains useful for special areas, extremely small quantities, unusual geometries, and final touch-up.

Automation therefore does not necessarily replace all manual work.

Instead, it can remove the repetitive portion of finishing while skilled workers handle special components.

How Does a Sanding Deburring Machine Fit Into an Automated Sign Production Line?

An increasingly automated metal sign workflow can look like this:

Step 1: Digital Design

The customer logo or sign artwork is converted into production files.

Step 2: CNC or Laser Cutting

Metal sheets are cut into letters, logos, panels, or other components.

Step 3: Automatic Deburring

Cut components pass through the sanding deburring machine.

The machine may perform:

• Burr removal

• Edge rounding

• Slag removal

• Oxide removal

• Surface sanding

Step 4: Bending or Forming

Components requiring dimensional forming move to press brakes, channel letter bending machines, or other forming equipment.

Step 5: Welding or Assembly

Parts are welded, riveted, bonded, or mechanically assembled.

Step 6: Surface Treatment

Signs may undergo:

• Powder coating

• Wet painting

• Polishing

• Brushing

• Plating

Step 7: Lighting and Electrical Assembly

For illuminated signs, LEDs, wiring, power supplies, and related components are installed.

Step 8: Final Inspection and Packaging

The finished signage is inspected, protected, and prepared for transportation.

When deburring is automated, one of the most repetitive manual steps between cutting and fabrication becomes more predictable.

Which Materials Can Be Processed?

Machine capability varies, but industrial sanding deburring equipment is commonly used for:

Aluminum

Frequently used in channel letters, sign panels, cabinets, and outdoor signage because of its low weight and corrosion resistance.

Stainless Steel

Common in premium commercial signage, architectural lettering, hotel signs, corporate logos, and decorative applications.

Carbon Steel

Used in structural sign components, frames, brackets, cabinets, and large outdoor sign systems.

Galvanized Steel

Often used where structural strength and corrosion protection are required.

Some industrial systems can also process materials such as copper and other non-ferrous metals, but the abrasive configuration and machine parameters must be matched to the material.

What Should Sign Manufacturers Consider When Choosing a Sanding Deburring Machine?

Material Type

Start with the metals actually used in your factory.

Processing aluminum and processing thick carbon steel can require different abrasive and machine configurations.

Maximum Working Width

The conveyor and sanding width must accommodate your typical sign components.

Factories producing large architectural panels may require a considerably wider machine than companies making small channel letters.

Minimum Part Size

This specification is particularly important for signage.

Letters and logos may contain small individual components that need to remain stable on the conveyor during sanding.

Material Thickness Range

Confirm both minimum and maximum supported thickness.

Do not assume a machine suitable for sheet metal automatically handles every sign component.

Burr Removal Capability

Ask what kind of defects the machine is designed to remove:

• Light laser burrs

• Heavy cutting burrs

• Slag

• Oxide layers

• Surface scratches

Edge-Rounding Capability

If coating preparation is important, ask about achievable and repeatable edge rounding rather than simply asking whether the machine "deburrs."

Surface Finish Requirements

Determine whether you require only functional deburring or also visible surface finishing.

Number of Processing Stations

Multi-station systems may combine:

abrasive belt + brush + finishing unit

allowing several operations to be completed during one pass.

Dust Collection

Dry sanding generates metal and abrasive dust.

A suitable extraction system is therefore an important part of the overall installation.

When processing different metals, the manufacturer should also evaluate the appropriate dust-management and fire-safety requirements for the materials involved.

Wet vs. Dry Processing

Some equipment uses dry abrasive processing, while other systems use wet grinding.

The correct choice depends on:

• Material

• Surface requirement

• Dust management

• Production environment

• Downstream process

Abrasive Consumption

Machine price is only part of long-term operating cost.

Sign manufacturers should also evaluate:

• Sanding belt life

• Brush life

• Replacement cost

• Changeover time

• Availability of consumables

Why Sample Testing Is Important Before Purchasing

When evaluating a sanding deburring machine, specification sheets provide only part of the answer.

The best test is often to send the equipment supplier actual sign components.

A representative sample can include:

• Aluminum channel letter backs

• Stainless steel letters

• Laser-cut company logos

• Metal sign panels

• Components with internal cutouts

• Parts with different thicknesses

The manufacturer can then evaluate:

• Burr removal

• Edge quality

• Surface appearance

• Part stability

• Processing speed

• Required abrasive combination

• Suitability for downstream coating

This is particularly important for sign manufacturers because their components often contain complex contours and small sections rather than simple rectangular plates.

Frequently Asked Questions

What does a sanding deburring machine do in sign production?

It removes burrs, sharp edges, cutting residue, and other surface defects from metal sign components after processes such as laser cutting or punching. Depending on the configuration, it can also round edges, remove oxidation, and prepare surfaces for coating.

Can a deburring machine process laser-cut sign letters?

Yes, provided the letter dimensions, thickness, and geometry fall within the machine's processing range. Small components should be tested to confirm that they remain securely supported during processing.

Can it process aluminum and stainless steel?

Many industrial deburring machines can process both aluminum and stainless steel, as well as carbon steel and other sheet metals. Abrasives and processing parameters should be selected for the specific material.

Why is edge rounding useful before powder coating?

Extremely sharp edges can make uniform coating coverage more difficult. Rounding the edge creates a more favorable geometry for coating application and can reduce weak coverage along corners.

Can an automatic deburring machine completely replace manual sanding?

Not necessarily. Manual tools may still be required for inaccessible areas, unusually shaped components, repair work, or final cosmetic finishing. Automation is most useful for repetitive, standardized portions of the process.

Is automatic deburring suitable for custom sign production?

Yes. Modern equipment can be useful for both repeated batches and high-mix production, provided the machine can accommodate the changing material sizes and processing requirements.

Should I choose a sanding belt machine or brush deburring machine?

It depends on the objective. Abrasive belts are generally useful for surface sanding and heavier burr removal, while flexible brush systems can be effective for edge rounding and processing contours. Multi-station machines combine these processes when both are required.

Conclusion

As laser cutting and CNC fabrication make sign production faster, manual deburring can increasingly become the bottleneck between cutting and final assembly.

Automated sanding deburring machines help sign manufacturers create a more balanced production workflow by reducing repetitive grinding and providing more consistent edge and surface treatment.

The main benefits include:

• Faster batch processing

• Reduced manual grinding

• More consistent edge quality

• Safer handling of metal components

• Better preparation for painting and powder coating

• Cleaner components for welding and assembly

• More repeatable results across large signage projects

• Better compatibility with automated metal fabrication workflows

For sign manufacturers producing channel letters, stainless steel logos, metal sign panels, dimensional letters, wayfinding systems, or architectural signage, an automated deburring system can become an important link between cutting and finishing.

However, machine selection should be based on actual production requirements rather than automation alone. Material type, component dimensions, burr severity, edge-rounding requirements, surface finish, abrasive configuration, dust collection, and downstream processes all need to be considered.

The most suitable sanding deburring machine is ultimately one that can process the real materials and sign components your factory produces consistently while reducing the amount of manual correction required before coating and assembly.
