Equipment Application
Supporting laser cutting machine, CNC stamping, various CNC processing or other machining deburring front production line. Equipment through straight line processing, sanding belt and multiple groups of sanding line wheel rotation, revolution, alternate, can be a real uniform removal of parts surface, contour edge and hole edge burr and uniform chamfering.
Share:
Features
1. Application: remove solid slag and burrs on the surface of workpiece; remove rust and oxide layer on the surface of the workpiece; Round the internal and external contours at the edge of metal sheet.
2. Scope of workpiece: metal sheet cut by laser, fire, CNC stamping and punched
3. Suitable material: stainless steel, iron, aluminum and copper. Remove oxide skin, polishing and brushing are available.
4. Metal sheet maximum width: 1000mm

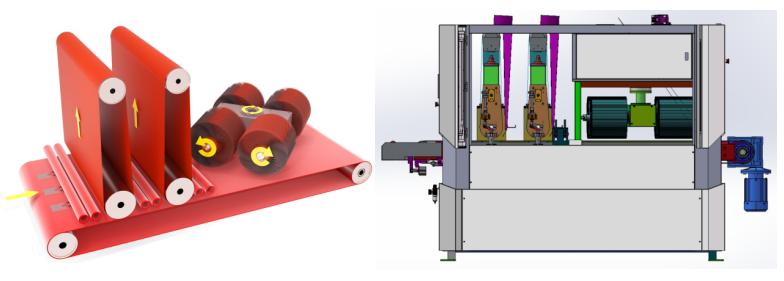

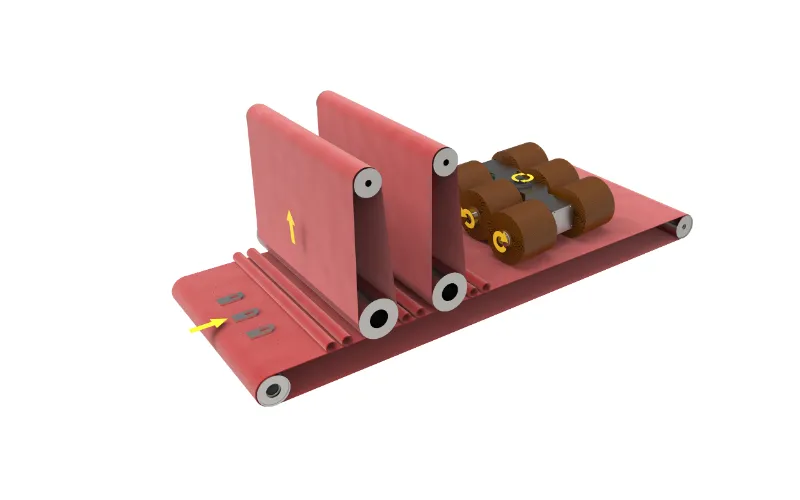

Equipment Schematic Diagram
Equipment Configuration and Related Technical Parameters
| Item | Parameters |
| Model | YZ1000SS |
| Dimensions/Package | 1650*3300*2100mm, 3200KG/1750*3400*2200mm, 3300KG |
| Processing range | W:1000mm,H:80mm, L:unlimited |
| Power supply | 380V/50Hz |
| Maximum power | 34.5KW |
| Control system | Delta PLC, HMI: DOP107B & Touch screen: DOP-110CS |
| Compressed air | 0.6MPa |
| Conveying system | |
| Conveying method | Wear-resistant and heat-resistant rubber belt |
| Conveying speed | 0.5m-25m/min |
| Conveying motor | Three-phase asynchronous motor, NMRV110+5.5KW, 1:30 |
| Sanding system | |
| Sanding consumable | Abrasive belt -1020mm*2, (40, 80, 120, 240mo) |
| Sanding roller size | 40/40/120mo |
| Sanding motors | Three-phase asynchronous motor, 15KW+11KW |
| Deburring system | |
| Deburring consumable | Emery cloth wheel*4 |
| Wheel size | 300-300-32, (40, 80, 120, 240mo) |
| Main spindle speed | 0-1400r/min (Frequency speed) |
| Main spindle motor | 5.5KW |
| Wheel alternating speed | 0-25r/min (Frequency speed ) |
| Wheel alternating motor | AC gear reduction motor-200W-100JB20G15-0.4KW |
| Lifting motor power | ChuangWei-86BYG250-156 |
| Workpiece fixed method | |
| Vacuum adsorption | 11kw, 2900r/min (1275*940*1400mm, 290KG) |
| Magnetic adsorption | High-intensity magnetic |
| Press roller | |
| Dedusting system | |
| Dust removal equipment | Filtration area 22 square meters/filtration accuracy 0.3um |
| Power | 5.5KW/50Hz/380V |
| Air volume | 3000-3500m³/h (Frequency) |
| Dimensions/Package | 840*800*2150mm, 300KG |
