Equipment Application
This double abrasive belts sander is mainly used to sanding and deburring the surface, edge and hole of the work piece which cut by laser, plasma, stamping and shearing. To realize the work piece surface brushed, oxide skin removed, polished and slight chamfered.
Share:
Features
1. Application: remove solid slag and burrs on the surface of workpiece; remove rust and oxide layer on the surface of the workpiece;
2. Scope of workpiece: metal sheet cut by laser, fire, CNC stamping and punched
3. Suitable material: stainless steel, iron, aluminum and copper. Remove oxide skin, polishing and brushing are available.
4. Metal sheet maximum width: 400mm
5. Polishing or brushing

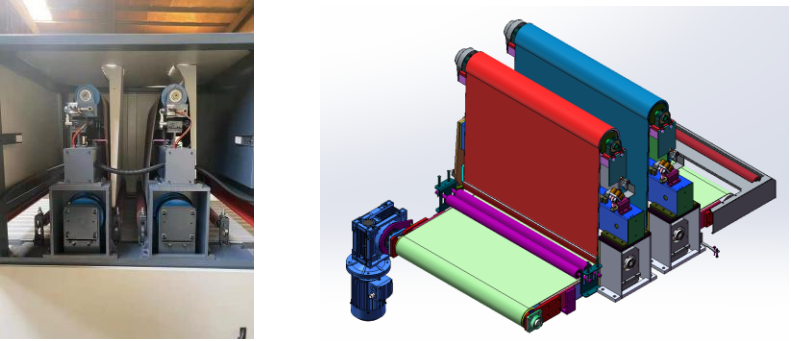

Equipment Schematic Diagram
The Double Abrasive Belts Sander is an advanced industrial sanding machine designed to deliver precise and consistent surface finishing on a wide range of materials, including wood, metal, and composite panels. Its dual sanding belts ensure efficient material removal, smooth finishes, and increased production speed, making it a reliable choice for factories, workshops, and professional fabrication environments.
Improved Efficiency: Dual belts process workpieces faster than single-belt machines, reducing production cycles.
Consistent Quality: Delivers uniform sanding results, minimizing material waste and improving product aesthetics.
Adjustable Operation: Speed, pressure, and belt alignment can be customized for different materials and applications.
Cost-Effective: High durability and low maintenance requirements reduce long-term operational costs.
Furniture manufacturing
Metal fabrication workshops
Cabinet and door production
Composite panel processing
Industrial woodworking shops
For manufacturers and professional workshops seeking high-performance surface finishing, the Double Abrasive Belts Sander combines precision, efficiency, and versatility. Its dual-belt system ensures faster processing while maintaining superior finish quality, making it ideal for both large-scale production and specialized custom projects. Investing in this machine improves workflow, reduces labor costs, and guarantees consistent results across all materials.
List of Spare Parts
| Sr. | Part | Size/mm | Mesh No. | Duration | Picture |
| 1 | Wideabrasive belt | 420*1750 | 40/80/120 |  |
| Item | Parameters |
| Model | SS400 |
| Dimensions | 1300*900*2000mm, 1000KG |
| Min. Work piece length | ≥300mm |
| Work piece thickness | 0.5-110mm (miumum 0.2mm) |
| Feeding speed | 0-25m/min |
| Feeding motor power | 1.1Kw |
| Lifting motor power | 0.37Kw |
| Sanding belt No. 1 | |
| Rate of work | 5.5Kw Hard |
| Rubber roller | Hard rubber covered roller*φ160mm |
| Sanding belt No. 2 | |
| Rate of work | 5.5Kw Soft |
| Rubber roller | Soft rubber covered roller*160mm |
| Abrasive belt size | 420*1750mm |
| Total rate of work | 12.47Kw |
| Magnetic valve | JELPC |
| Material of feeding bed | Marble |
| Bearing | TR |
| Electric | CHINT |
| Package | Wooden box: 1400*1000*2100mm, 1100KG |
