It adopts flight light path design, with unique structure, small light path deviation, high stability and convenient adjustment.
Share:
Product Characteristics
It adopts flight light path design, with unique structure, small light path deviation, high stability and convenient adjustment.
Processing: acrylic and double color plate carving, organic glass carving and cutting, sign carving, crystal, photo frame, trophy carving, license plate carving, etc.
Crafts Industry: Wood, bamboo chips, ivory, bone, leather, rubber board, marble, shells and other materials are beautifully carved with patterns and characters.
Leather and garment processing industry: complex characters and figures are carved, cut, carved and hollowed out on leather, synthetic leather, artificial leather, cloth and fur.
Model industry: making sand table building model and aircraft model, foam cutting, ABC board cutting, multi-layer board cutting, etc.
Packaging Industry: Engraving and Printing Rubber Plate, Plastic Plate, Double Layer Plate, Cutter Die Cutting Plate, etc.
Details Show

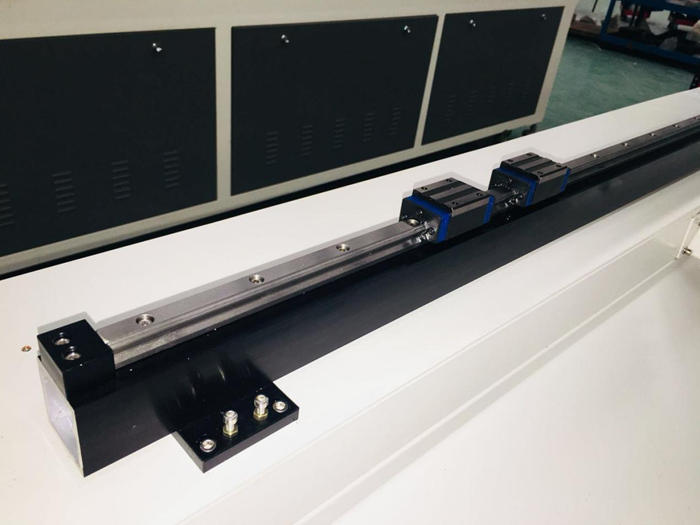

Guide rail

Platform

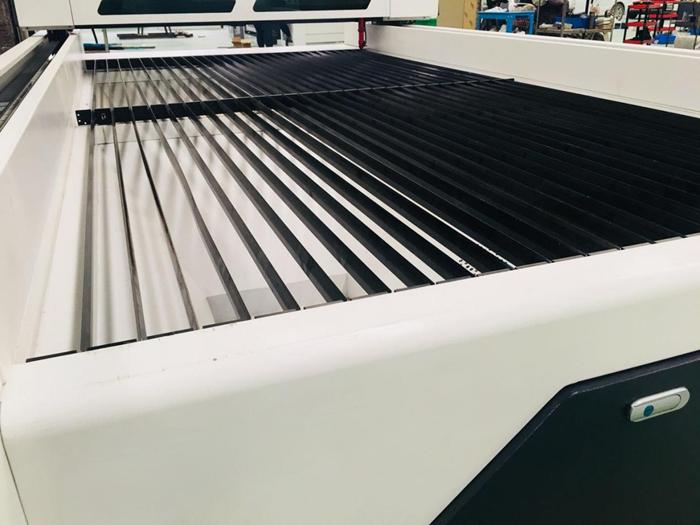

knife blade
Cooling system

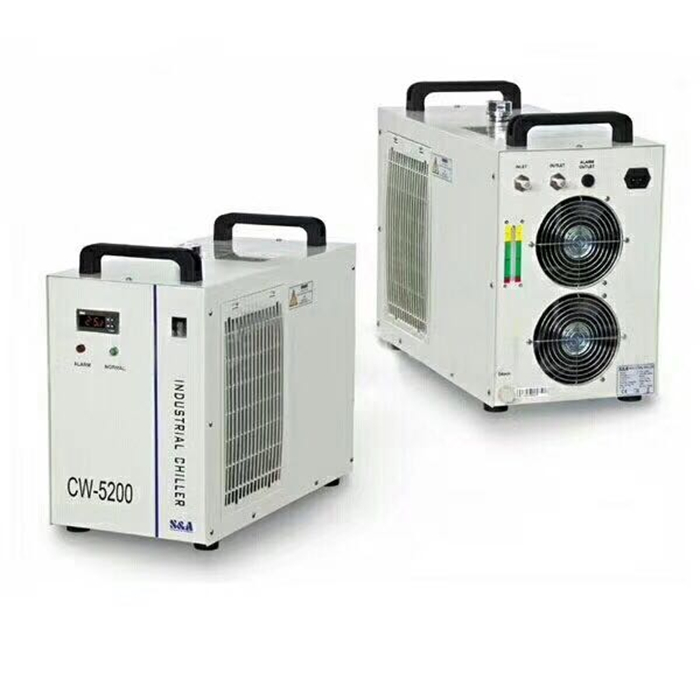

Water Chiller
Exhaust fan

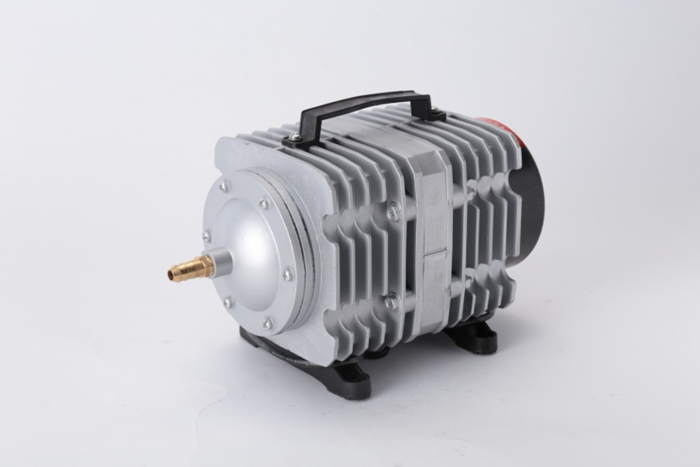

Air Pump

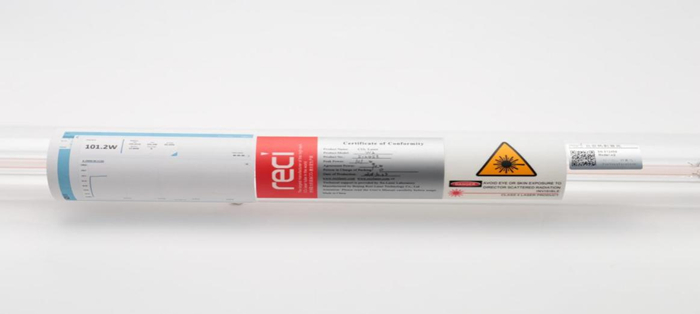

Laser tube


Application Show

Technical Parameters
| Laser Type | sealed CO2 laser tube |
| Laser Power | 350W/500W |
| Engraving Speed | 1-60,000mm/min |
| Position accuracy | ≤±0.05mm |
| Min character | 1mm |
| XY Working area | 1240mm*2500mm |
| Cooling mode | water cooling and protection system |
| Laser output Control | 1-100% Set buy software |
| Operating Voltage | AC220V±10%, 50-60HZ |
| Compatible Software | CORTLDRAW、PHOTOSHOP、AUTOCAD |
| Supported Graphic Formats | PLT、BMP、DXF、AI、HPGL、DST |
| Working table | knife blade or honeycomb |
| Working Environment | Temperature: 0—45℃ Humidity: 5%—95%(No condensate water) |
