Manipulator alternately feeding structure, the material clamps are casted which can avoid scratching the matenial, mean while improving the feeding holding.
The linear guide way is matched with the ball screw, with 750W high-power servo motor, greatly improve the feeding speed and stability.
Share:
Features
Manipulator alternately feeding structure, the material clamps are casted which can avoid scratching the matenial, mean while improving the feeding holding.
The linear guide way is matched with the ball screw, with 750W high-power servo motor, greatly improve the feeding speed and stability.
High strength alloy cutters are used for slotting knifes, each knife has 8 angles,no need to sharpen, greaty improve the working life.
Double-knife altermate bending structure,the curved knife structure cast by ductile iron,good shock absorption, high structural strength, reduced number of parts splicing,high-power servo motor,high-speed bending work Under the bending mechanism,thebending mechanism is permanently deformed,which effecively improves the positioning accuracy and the stability of the high-speedbending.
Parameter Table
| No | Item | Data | |
| 1 | Motor | Delta servo motors (two) | |
| 2 | Feeding system | Ball screw drived clamps | |
| 3 | Cutting system | Plane cutter | |
| 4 | Min. bending angle | R6 | |
| 5 | Suitable material | Stainless steel, galvanized steel, aluminum, etc. | |
| 6 | Material thickness | 0.3-1.2mm | |
| 7 | Material height | 15-200mm | |
| 8 | Power | AC220V, 50/60Hz | |
| 9 | Files format | DXF. PLT | |
| 10 | Packing | Wooden box, 2.0CBM, 350Kg | |
 | Two mechanical clamping hands driven by high-quality double ball screws. Feeding system: fast and smooth | ||
 | Plane cutter easily handle different kinds of material processing. High strength alloy cutters, long serve time. | ||
 | Double-bend alternately bending system, easily to make small angel sign letters. 750W powerful servo motor, equipped with Planet Reducer | ||

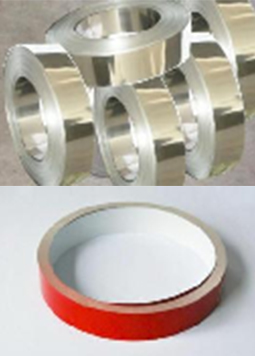

 | Stainless Steel, Galvanized Sheet, Aluminum flat | ||
Relevant Products
Equipped with full servo control system to ensure the accuracy and stability of feeding, slotting, and bending function.
Productive: Cutting, Notching, Flanging, Bending & Shearing. All the functionl will short the letter making time.
Adaptable: can process all kinds of materials used in making sign letters, such as stainless steel, galvanized steel, flat aluminum, profile aluinum and channelume.
Process: aluminum plate, channelume, single side aluminum profile, 3D composite material.
