Adopts CNC turning tool as slotting tool, which has high strength and low loss. Each knife has 8 angles, no need to sharpen, greatly improve the working life. The processing is low noise and no dust, ensuring smooth slotting effect.
Share:
Features

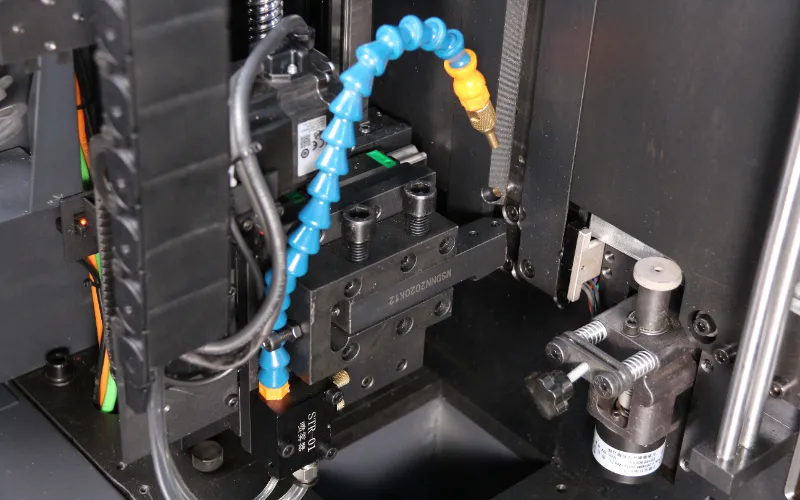

Adopts CNC turning tool as slotting tool, which has high strength and low loss. Each knife has 8 angles, no need to sharpen, greatly improve the working life. The processing is low noise and no dust, ensuring smooth slotting effect.

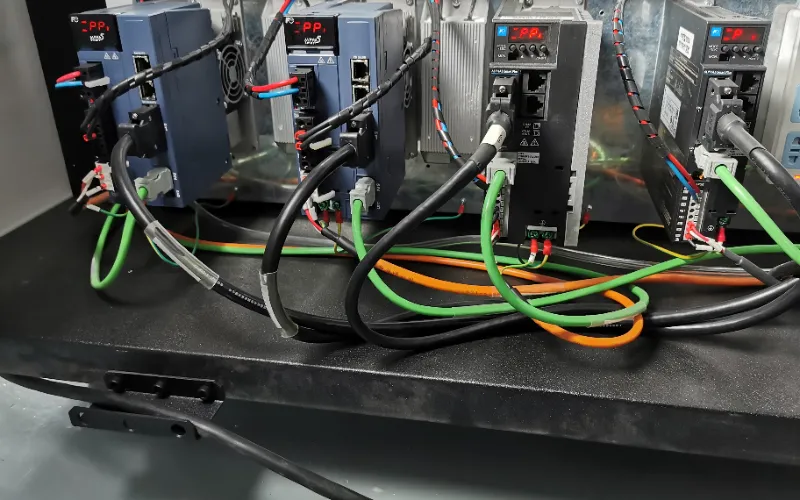

Adopting the progressive clamping feeding design, the feeding torque is large and the precision is high, which effectively avoids the waste of materials and fundamentally saves the cost. Through the perfect combination of feeding clamp, high-quality ball screw and linear guide, high-power servo drive, it can meet the high load working condition, and cooperate with the material pre-straightening system, eliminating the feeding slipping and deformation of the sheet during the feeding process.

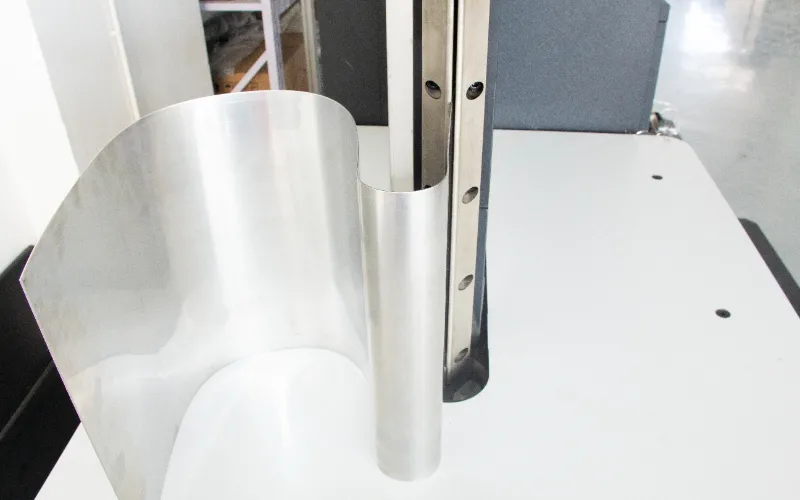

The precision mechanical bending system performs good when processing thick plates and high-side materials. The software is easy to operate, and the processing graphics do not need to modify the nodes, which greatly improves the work efficiency. It is the preferred bending machine for high-side words.
Parameter Table
| Slotting Tool | Milling plane cutter |
| Bending Method | Double-bends alternate bending |
| Package Size | 1880*780*1850mm |
| Working Space | 4000*1100*1850mm |
| Suitable Material | Stainless steel, galvanized plate, aluminum plate |
| Slotting Trip | 20~300mm |
| Material Thickness | 0.4~1.8mm (customize 3mm) |
| Min. Bending Angle | R15 |
| Control System | 4 axis control system (3 servo axis control) |
| File Format | Dxf. Plt. |
| Power | AC220V、50Hz、4.0Kw |
| Machine Weight | 750Kg |
