Process: aluminum plate, channelume, single side aluminum profile, 3D composite material.
Alloy milling cutter slottedat any angle between 60°to 120°.
Share:
Features
Process: aluminum plate, channelume, single side aluminum profile, 3D composite material.

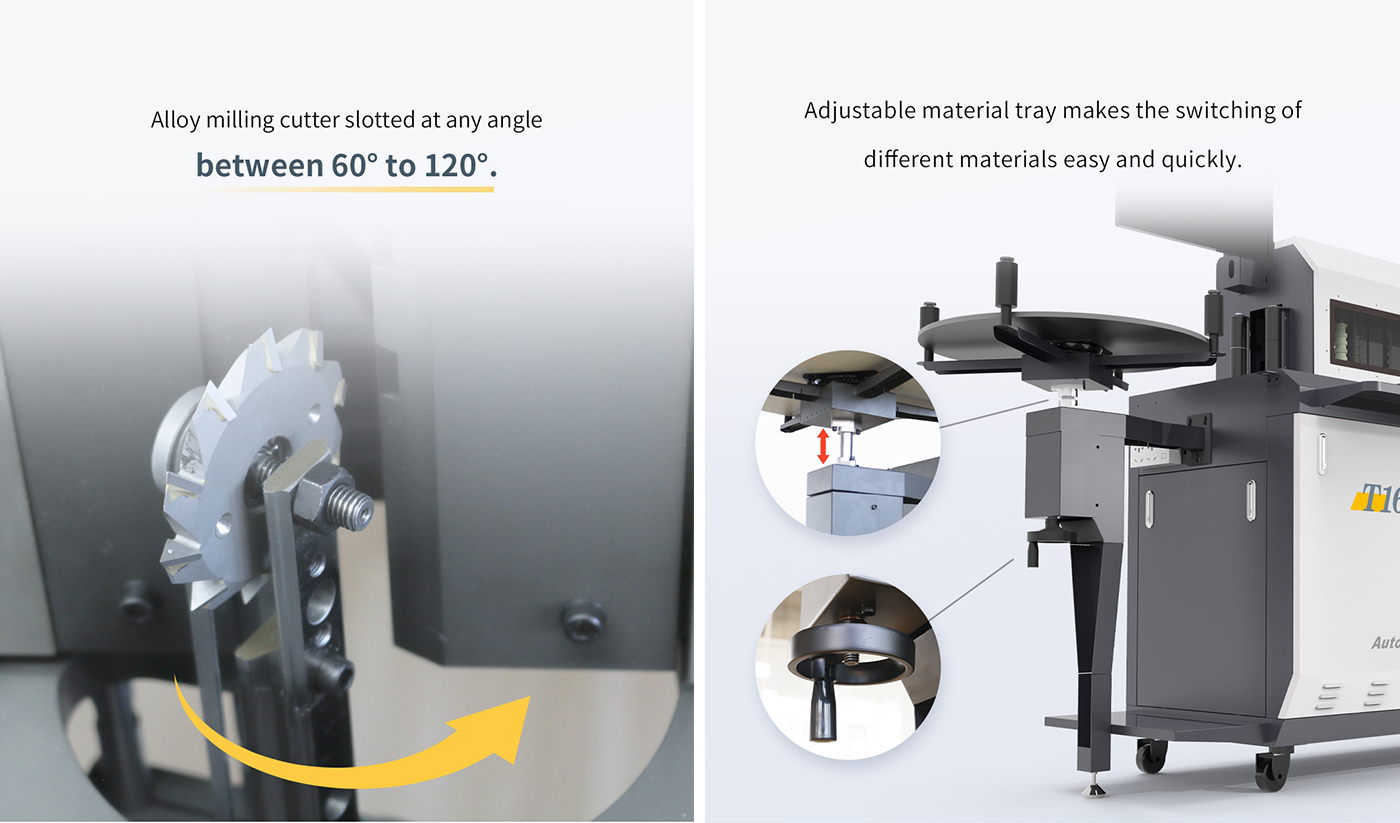

Alloy milling cutter slottedat any angle between 60°to 120°.

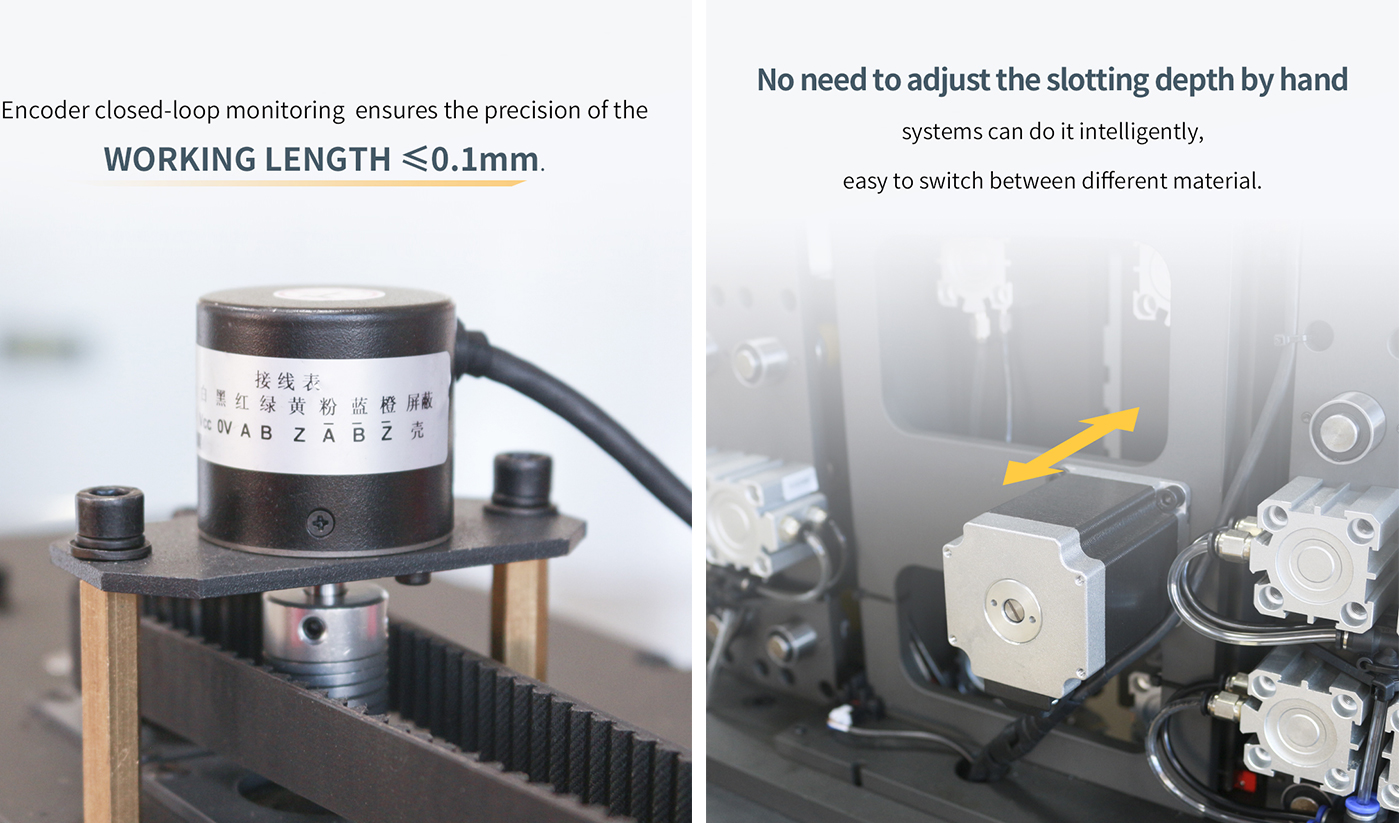

Adjust the slotting depth on software and controlled by motor. Inteligently and easy to switch between different material.

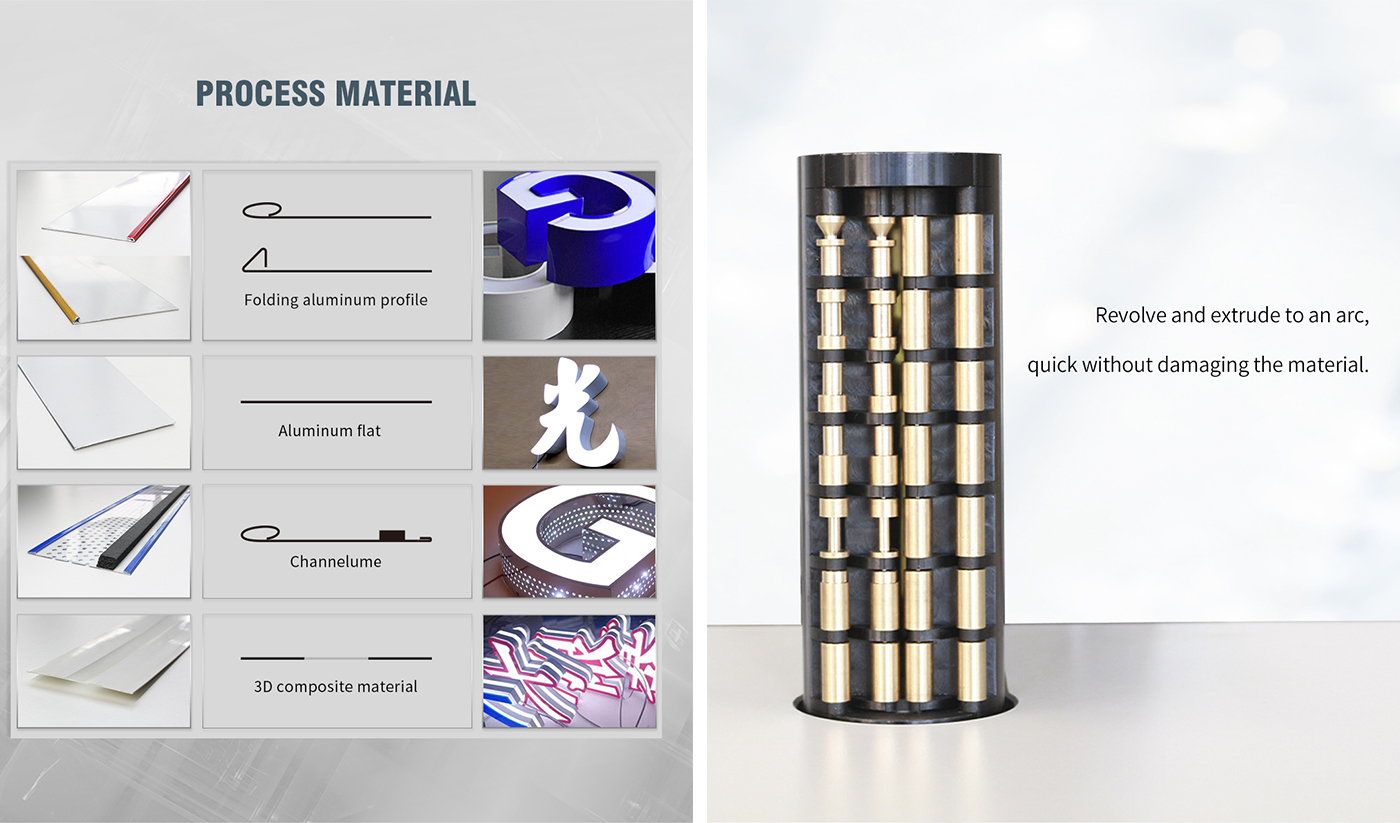

Revolve and extrude to an arc,quick without damaging thematerial.
The built-in material data of the system can bend various specifications of material accurately. Adjustable material tray, easy to switch between different materials quickly.
Parameter Table
| No | Item | Data |
| 1 | Motor | Leadshine motors |
| 2 | Feeding system | High war resistance rubber roller |
| 3 | Cutting system | Plane cutter |
| 4 | Min. bending angle | R10 |
| 5 | Suitable material | Aluminum flat, profiles, channelume, plastic, etc. |
| 6 | Material thickness | 0.3-1.5mm |
| 7 | Material height | 15-160mm |
| 8 | Power | AC220V, 50/60Hz |
| 9 | Files format | DXF. PLT |
| 10 | Packing | Wooden box, 1.6CBM（135*70*147cm）, 240Kg |
| ||
