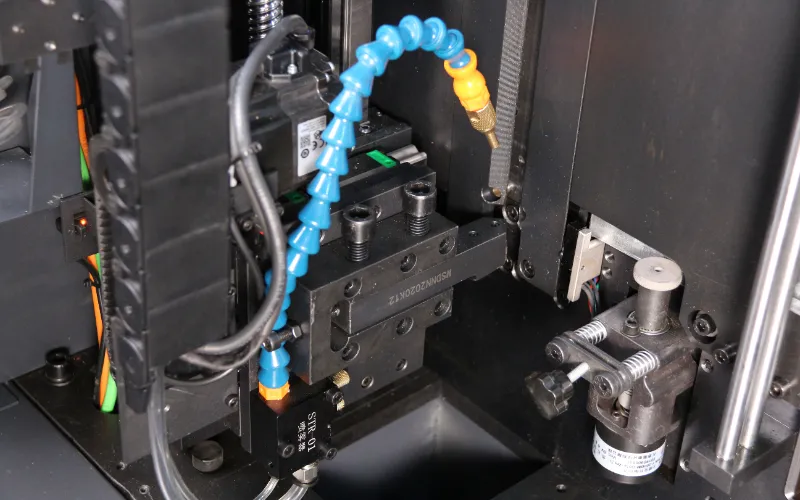

ET80/ET150 adopts CNC turning tool as slotting tool, with high strength and low loss. The blade has 4 edges on both sides and no need sharpening. Equipped with oil mist lubrication cooling function, prolong the life of knife particles.
Share:
Features
ET80/ET150 adopts CNC turning tool as slotting tool, with high strength and low loss. The blade has 4 edges on both sides and no need sharpening. Equipped with oil mist lubrication cooling function, prolong the life of knife particles.

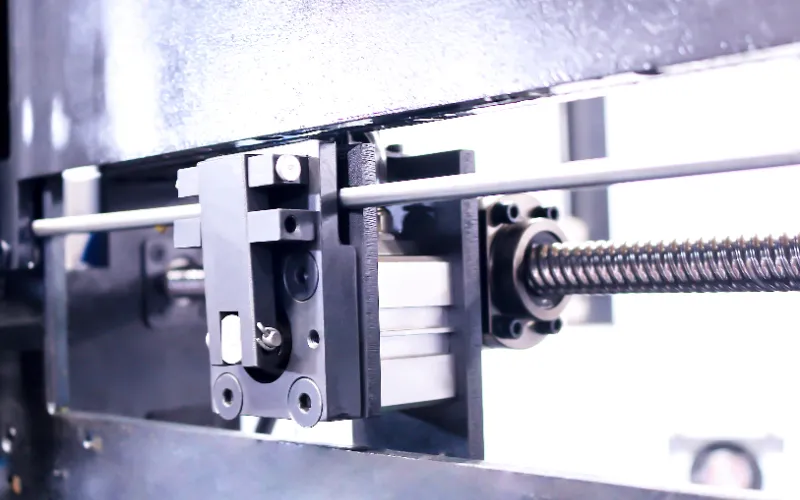

Adopting progressive clamping feeding, the feeding torque is large, the precision is high, the material waste is effectively avoided, and the cost is fundamentally saved. Through the perfect combination of material jig, high quality ball screw and linear guide rail, high power Fuji servo drive, meet the high load working state, cooperate with the material pre-straightening system, eliminate the feeding slip phenomenon in the traditional rolling feeding process, and avoid the deformation of plate in the feeding process.
Precision mechanical scimitar systems perform better against thick plates and big wide materials.The software operation is simple, the processing graph does not need to modify the node, greatly enhances the work efficiency.
Parameter Table
| Slotting Tool | Plane cutter |
| Bending Method | Beating |
| Working Space | 6350*1860*2350mm |
| Suitable Material | Stainless steel, galvanized steel, Aluminum plate |
| Slotting Trip | 200-800mm/400-1550mm |
| Material Thickness | 0.4~2mm |
| Control System | 4 axis control system (4servo axis control) (1500Watt) |
| File Format | Dxf.Plt.Ai |
| Power | AC220V、50Hz、5.0Kw |
| Machine Weight | 1000Kg |
